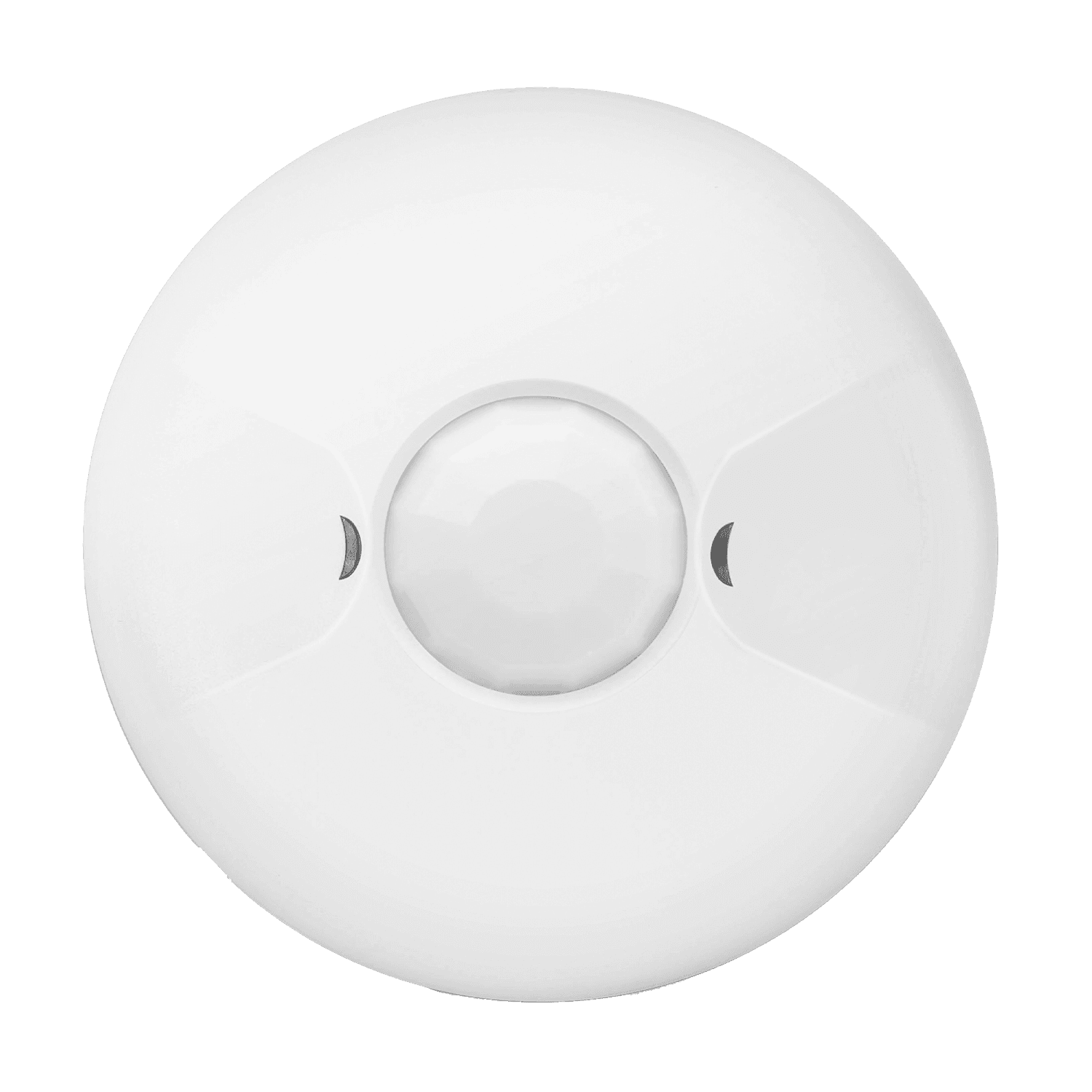

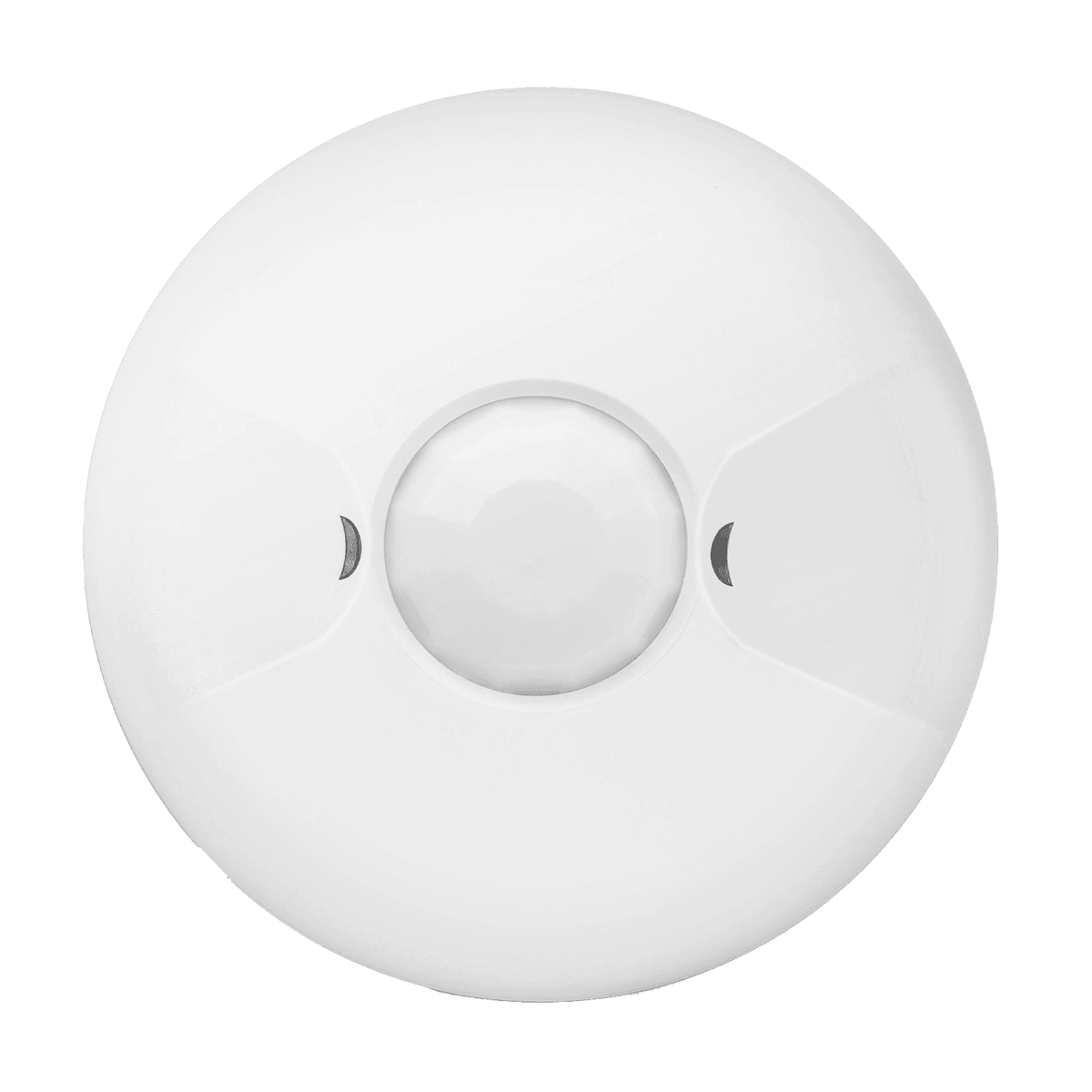

Enerlites MPC-50VD-W - 360° Line Voltage PIR Occupancy Ceiling Sensor with 0-10V Dimming - White

The ENERLITES MPC-50VD is a commercial grade line voltage ceiling mount sensor that operates lights using passive infrared (PIR) technology and 0-10V dimming. The sensor features a 360° field of view fresnel lens that provides up to 1200 sq.ft. of coverage area. This ceiling mounted sensor operates lights ON/OFF based on occupancy and ambient light levels detected in the area. The occupancy sensor turns lights ON when motion is detected and OFF when no motion is detected for a pre-selected time delay. Ambient light level detection prevents the occupancy sensor from turning lights ON when the ambient light levels are sufficient. Both the time delay and light level settings can be easily adjusted. This ceiling sensor is compatible with either LED or fluorescent lights. This ceiling mount motion sensor is ideal for use in offices, classrooms, warehouses and other commercial areas.\n\nFeatures:\n• Voltage: 120/277 VAC, 50/60 Hz\n• Wiring: Class 2 0-10V Wiring\n• Resistive: 10A\n• Electronic Ballast/LED: 800 VA @ 120 VAC;\n• 1385 VA @ 277 VAC\n• Load Rating: 2mA - 50mA\n• Motor: 1/4 HP @ 120 VAC\n• Coverage: 360°, 1200 sq. ft.\n• Model Number: MPC-50VD
